一、Kafka相关运行环境说明和必备基础知识点
Docker快速部署kafka
zk
docker run -d --name zookeeper -p 2181:2181 -t wurstmeister/zookeeper
kafka
docker run -d --name xdclass_kafka \ -p 9092:9092 \ -e KAFKA_BROKER_ID=0 \ -e KAFKA_ZOOKEEPER_CONNECT=8.142.19.202:2181 \ -e KAFKA_ADVERTISED_LISTENERS=PLAINTEXT://8.142.19.202:9092 \ -e KAFKA_LISTENERS=PLAINTEXT://0.0.0.0:9092 wurstmeister/kafka
进入容器内部，创建topic
docker exec -it 40162dc4c773 /bin/bash
cd /opt/kafka
bin/kafka-topics.sh --create --zookeeper 172.23.46.157:2181 --replication-factor 1 --partitions 1 --topic xdclass-topic
创建生产者发送消息
bin/kafka-console-producer.sh --broker-list localhost:9092 --topic xdclass-topic
运行一个消费者（新建一个窗口，然后进入容器）
docker exec -it 40162dc4c773 /bin/bash
cd /opt/kafka
bin/kafka-console-consumer.sh --bootstrap-server localhost:9092 --topic xdclass-topic --from-beginning
运行结果如下
二、Flink Source 读取消息队列Kafka连接器整合实战
- 之前自定义SourceFunction，Flink官方也有提供对接外部系统的，比如读取Kafka
- flink官方提供的连接器
添加依赖
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-connector-kafka_${scala.version}</artifactId>
<version>${flink.version}</version>
</dependency> - 编写代码
- FlinkKafkaConsumer-》FlinkKafkaConsumerBase-》RichParallelSourceFunction（富函数-并行读取kafka多分区）
Flink08KafkaSourceApp
点击查看完整内容
import net.xdclass.model.VideoOrder;
import net.xdclass.sink.VideoOrderCounterSink;
import net.xdclass.source.VideoOrderSource;
import org.apache.flink.api.common.RuntimeExecutionMode;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.api.java.functions.KeySelector;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer;
import org.apache.flink.streaming.connectors.redis.RedisSink;
import org.apache.flink.streaming.connectors.redis.common.config.FlinkJedisPoolConfig;
import java.util.Properties;
public class Flink08KafkaSourceApp {
/**
* source
* transformation
* sink
*
* @param args
*/
public static void main(String[] args) throws Exception {
//构建执行任务环境以及任务的启动的入口, 存储全局相关的参数
final StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.setRuntimeMode(RuntimeExecutionMode.AUTOMATIC);
Properties props = new Properties();
//kafka地址
props.setProperty("bootstrap.servers", "8.142.19.202:9092");
//组名
props.setProperty("group.id", "video-order-group");
//字符串序列化和反序列化规则
props.setProperty("key.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
props.setProperty("value.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
//offset重置规则
props.setProperty("auto.offset.reset", "latest");
//自动提交
props.setProperty("enable.auto.commit", "true");
props.setProperty("auto.commit.interval.ms", "2000");
//有后台线程每隔10s检测一下Kafka的分区变化情况
props.setProperty("flink.partition-discovery.interval-millis","10000");
FlinkKafkaConsumer<String> consumer = new FlinkKafkaConsumer<String>("xdclass-topic", new SimpleStringSchema(),props);
//设置从记录的消费者组内的offset开始消费
consumer.setStartFromGroupOffsets();
DataStream<String> kafkaDS = env.addSource(consumer);
kafkaDS.print("kafka:");
//DataStream需要调用execute,可以取个名称
env.execute("kafka source job");
}

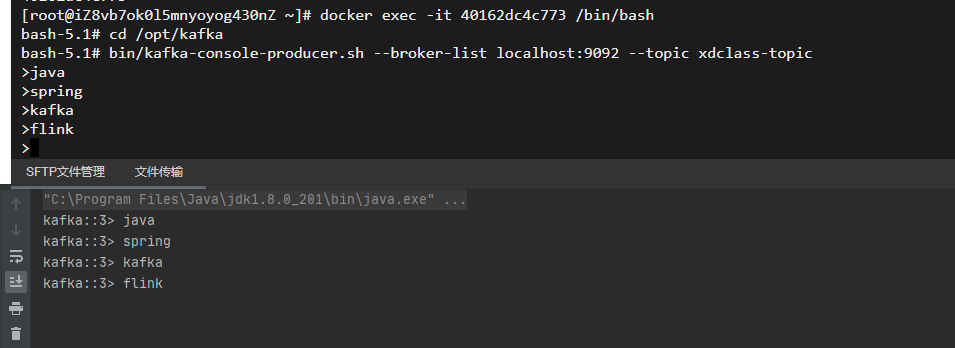

} 效果图
三、Flink Sink读取消息队列Kafka连接器整合实战
Sink输出配置
点击查看完整内容
import net.xdclass.model.VideoOrder;
import net.xdclass.sink.VideoOrderCounterSink;
import net.xdclass.source.VideoOrderSource;
import org.apache.flink.api.common.RuntimeExecutionMode;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.api.java.functions.KeySelector;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaProducer;
import org.apache.flink.streaming.connectors.redis.RedisSink;
import org.apache.flink.streaming.connectors.redis.common.config.FlinkJedisPoolConfig;
import java.util.Properties;
public class Flink08KafkaSourceApp {
/**
* source
* transformation
* sink
*
* @param args
*/
public static void main(String[] args) throws Exception {
//构建执行任务环境以及任务的启动的入口, 存储全局相关的参数
final StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.setRuntimeMode(RuntimeExecutionMode.AUTOMATIC);
Properties props = new Properties();
//kafka地址
props.setProperty("bootstrap.servers", "8.142.19.202:9092");
//组名
props.setProperty("group.id", "video-order-group");
//字符串序列化和反序列化规则
props.setProperty("key.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
props.setProperty("value.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
//offset重置规则
props.setProperty("auto.offset.reset", "latest");
//自动提交
props.setProperty("enable.auto.commit", "true");
props.setProperty("auto.commit.interval.ms", "2000");
//有后台线程每隔10s检测一下Kafka的分区变化情况
props.setProperty("flink.partition-discovery.interval-millis","10000");
FlinkKafkaConsumer<String> consumer = new FlinkKafkaConsumer<String>("xdclass-topic", new SimpleStringSchema(),props);
//设置从记录的消费者组内的offset开始消费
consumer.setStartFromGroupOffsets();
DataStream<String> kafkaDS = env.addSource(consumer);
kafkaDS.print("kafka:");
DataStream<String> mapDS = kafkaDS.map(new MapFunction<String, String>() {
@Override
public String map(String value) throws Exception {
return "大白菜内容："+value;
}
});
FlinkKafkaProducer<String> producer = new FlinkKafkaProducer<String>("dabaicai-order",new SimpleStringSchema(),props);
mapDS.addSink(producer);
//DataStream需要调用execute,可以取个名称
env.execute("kafka source job");
}
}

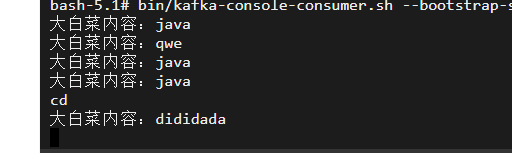

控制台输出（结果图）
本文作者为DBC，转载请注明。
